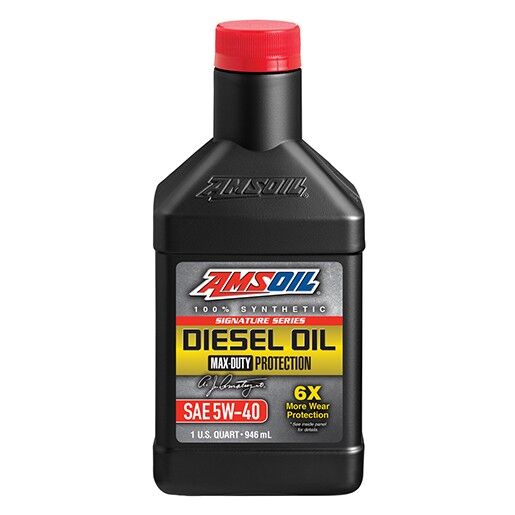

AMSOIL Signature Series Max-Duty Synthetic Diesel Oil 5W-40

Description

Signature Series Max-Duty Synthetic Diesel Oil 5W-40

Maximum Engine Protection
AMSOIL Signature Series Max-Duty Synthetic Diesel Oil 5W-40 delivers 6X better wear protection that’s boosted to the max. Wear on rings and cylinder liners leads to increased oil consumption and loss of compression, resulting in reduced horsepower and fuel economy. Independent testing shows Signature Series Max-Duty delivers 6X more wear protection than required by the Detroit Diesel DD13 Scuffing Test for Specification DFS 93K222, delivering extra protection so you can push your diesel with peace of mind.

Viscosity Control
Using top-tier synthetic base oils, Signature Series Max-Duty is naturally resistant to oxidation and the thickening effects of soot contamination. That, along with boosted detergent/dispersant additives, keeps soot particles suspended independently, helping prevent the formation of larger, wear-causing particles. Viscosity increase is minimized and soot-related wear is controlled. Lower volatility also helps Signature Series Max-Duty Diesel Oil retain its viscosity after high-temperature service for maximum engine protection and efficiency.

Excels in Extreme Temperatures
AMSOIL Signature Series Max-Duty Synthetic Diesel Oil 5W-40 resists thermal (heat) breakdown better than conventional and competing synthetic diesel oils. Unlike conventional oils, Signature Series contains no wax, staying fluid in sub-zero temperatures for easier starting, improved oil flow, and reduced wear. Signature Series 0W-40 (DZF) has a broad viscosity range that offers 4X better cold-cranking ability than a 15W-40 oil in the ASTM D5293 cold cranking viscosity test, making it excellent for use in both hot-operating engines and cold-weather starting extremes.

Minimizes Oil Consumption
Signature Series Max-Duty has a low rate of volatility (burn-off), reducing oil consumption during operation and passing less oil vapor into the combustion chamber. It provides up to 76 percent less oil consumption than required by the API CK-4 standard in the Caterpillar-1N oil consumption test.

Keeps Turbos Clean
AMSOIL Signature Series Max-Duty Synthetic Diesel Oil provides protection boosted to the max, delivering up to 60% better turbo cleanliness and withstanding the extra demands you place on the turbo when pulling heavy loads or updating the tune for maximum horsepower.

^JBased on specification standards of CAT C13 2nd Ring Top Land Carbon testing. K Based on industry-standard testing using the NMMA FC-W Rust Test. *Based on third-party testing in the Detroit Diesel DD13 Scuffing Test for Specification DFS 93K222 using 5W-30 as worst-case representation

^**All trademarked names and images are the property of their respective owners and may be registered marks in some countries. No affiliation or endorsement claim, express or implied, is made by their use. All products advertised here are developed by AMSOIL for use in the applications shown.

APPLICATIONS
Use in diesel engines and, where appropriate, gasoline engines requiring any of the following specifications:

• API CK-4/SN, CJ-4, CI-4+, CF
• Volvo VDS4.5, VDS4, VDS3
• Mack EOS-4.5, EO-O
• Renault RLD-4, RLD-3
• Cummins CES20086, CES20081
• Caterpillar ECF-2, ECF-3, ECF-1-a
• DDC 93K218, 93K215, 93K214
• DFS 93K222
• ACEA E9, E7
• MB 228.31
• MAN 3575
• MTU Type 2.1, II, I
• JASO DH-2
• Deutz DQC III-10LA
• Scania LA-2
• Chrysler MS 10902
• Ford WSS-M2C171-F1

COMPATIBILITY
AMSOIL Signature Series Max-Duty Synthetic Diesel Oil is compatible with other conventional and synthetic engine oils. Mixing AMSOIL diesel oils with other oils, however, will shorten the oil’s life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.

Aftermarket oil additives are not recommended for use with AMSOIL synthetic diesel oils.

SERVICE LIFE
Diesel Engine Service Life
Heavy-Duty On-/Off-Road: Three times (3X) OEM¹ recommendation, not to exceed 60,000 miles/600 hours or one year, whichever comes first.

Turbodiesel Pickup: Two times (2X) OEM¹ recommendation, not to exceed 25,000 miles or one year, whichever comes first.

Competition Service Life: Provides lasting protection for multiple events. Use oil analysis to determine appropriate drain interval.

Gasoline Engine Service Life
Two times (2X) OEM¹ recommendation, not to exceed 15,000 miles or one year, whichever comes first.

Drain intervals may be extended further with oil analysis.

Note: Extended drain intervals are not recommended for performance-modified engines, when using biofuels containing more than 10 percent ethanol or 15 percent biodiesel (B15) or for 2007-2009 Caterpillar* C13 and C15 on-highway engines. Extend drain intervals beyond OEM recommendations in these instances only with oil analysis. Note: 2007-2010 Dodge**, Ford** and GM** turbodiesel pickups are also not recommended for extended drain intervals when using DHD.

1Refer to your owner’s manual for OEM drain interval recommendations and guidelines for severe and normal service.

PRODUCT WARRANTY
Using AMSOIL synthetic lubricants or practicing extended drain intervals does not void your new vehicle or equipment manufacturer’s warranty. All AMSOIL lubricants and filters are covered by the AMSOIL Limited Warranty. For complete information visit www.amsoil.com/about/guarantee/.

HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Safety Data Sheet (SDS). An SDS is available online at www.AMSOIL.com or upon request at (715) 392-7101. Keep Out of Reach of Children. Recycle used oil and bottle.
